Overview

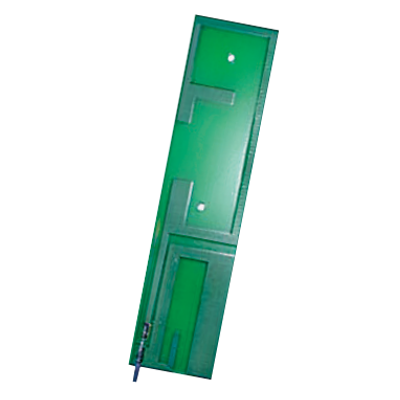

Laird Revie Plex printed circuit board (PCB) antenna can be placed on the inside of a non-metallic housing allowing it to be hidden almost anywhere while providing an invisible solution for many applications. The combination of multiple frequency bands and an omnidirectional pattern offers a variety of uses suited for indoor applications. The antenna is specifically designed for internal applications covering the 850/900/1800/1900 and UMTS bands.
Specifications
VSWR
3.0:1
Gain
3.8
Frequency Range (Min)
824
Frequency Range (Max)
2170
Connector Type
UFL
Dimension (Height - mm)
0.2 mm
Dimension (Length - mm)
70 mm
Dimension (Width - mm)
20 mm
Efficiency
Average 55% @ 900 MHz, 69% @ 2000 MHz
Pattern Type
Omnidirectional
Polarization
Linear, vertical
| Part Number | Antenna Type | Cable Length (cm) | Connector | Environment | Frequency Range (Max) | Frequency Range (Min) | Frequency Range 2 (Max) | Frequency Range 2 (Min) | Gain (max) | Gain (min) | Pattern Type | Wi-Fi Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 End of Life (EOL) | Internal/Embedded | 10.0 | u.FL | Internal/Embedded | 960 MHz | 824 MHz | 2170 MHz | 1710 MHz | 3.8 | 2.2 | Omnidirectional | 1 |
End of Life (EOL) | Internal/Embedded | 12.7 | u.FL | Internal/Embedded | 960 MHz | 824 MHz | 2170 MHz | 1710 MHz | 3.8 | 2.2 | Omnidirectional | 1 |
End of Life (EOL) Buy Now | Internal/Embedded | 15.2 | u.FL | Internal/Embedded | 960 MHz | 824 MHz | 2170 MHz | 1710 MHz | 3.8 | 2.2 | Omnidirectional | 1 |
End of Life (EOL) Buy Now | Internal/Embedded | 12.7 | u.FL | Internal/Embedded | 960 MHz | 824 MHz | 2170 MHz | 1710 MHz | 3.8 | 2.2 | Omnidirectional | 1 |
Documentation
| Name | Part | Type | Last Updated |
|---|---|---|---|
| Datasheet - Revie Plex 1218 | All | Datasheet | 09/09/2024 |
What is dBd and dBi and how do you convert from dBd to dBi?
dBd is a unit of measure for gain using a dipole as a reference; whereas, dBi uses an isotropic radiator. To convert from dBd to dBi simply add 2.15 to the dBd value to get the dBi value (e.g. 0 dBd= 2.15 dBi)
