Nitrogen95 SMARC

Contact us today for samples!

Our new Nitrogen95 SMARC family is powered by NXP’s i.MX 95 processor family, NXP’s PF09 PMIC and PF53 Regulators, our Sona Wi-Fi 6/6E and Bluetooth 5.3/5.4 wireless modules, LPDDR5 RAM, and eMMC storage. The Nitrogen95 SMARC is designed to meet the needs of the most demanding commercial, industrial, and medical HMI products. Our in-house USA based assembly allows you to choose the best RAM, storage, and connectivity options for your product. All Nitrogen95 SMARC modules come with our industry leading software and integration support.

• Powerful Heterogenous Multiprocessing: Up to 1.8 GHz 6x Cortex-A55 microprocessor, a 800 MHz Cortex-M7 microcontroller, and a 333 MHz Cortex-M33 microcontroller allows you to run multiple Linux instances in virtual machines and two RTOS instances in their own dedicated, hardware-firewalled subsystems.
• High Performance Graphics and Display: Up to three independent displays with resolutions up to 4K, tablet-class up to 64 GFLOPS GPU, and hardware accelerated video decode up to 4K60P

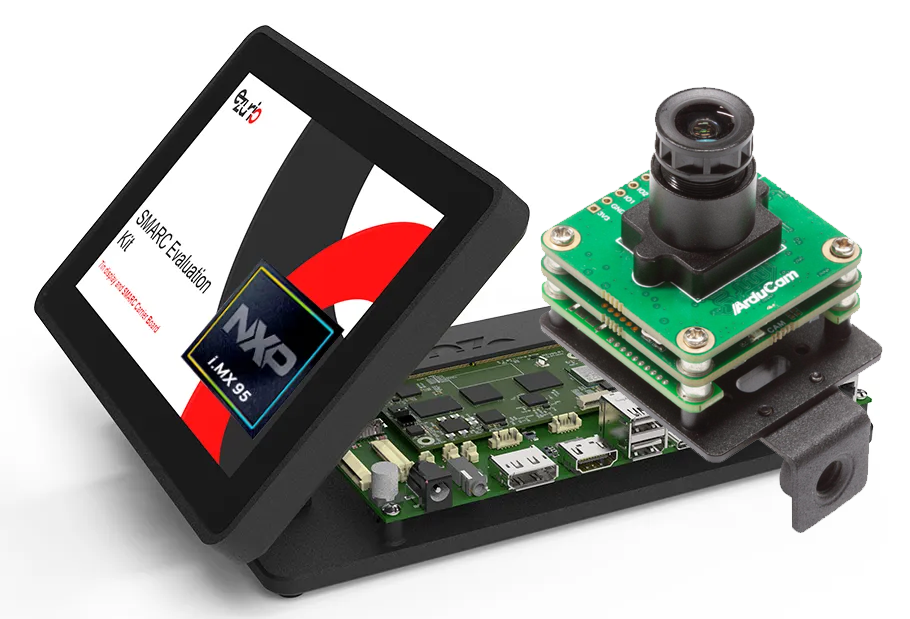

• Advanced Vision Pipeline: Support multiple camera via dual MIPI-CSI with virtual channels, onboard image signal processor (500 MP/s), video encode up to 4K60P
• Dedicated AI Accelerator: High-performance edge AI via an integrated NXP eIQ® Neutron NPU, delivering up to 2 TOPS.
• High Speed Interfaces: Dual PCI-Express Gen3 (8.0 Gbps), USB 3.1 Gen1 (5 Gbps), USB 2.0 (480 Mbps), 2x Gb Ethernet (1 Gbps), and 10 Gb Ethernet (10 Gbps)
• Industrial Interfaces: UART, SPI, I2C, I2S, CAN-FD, GPIO, SDIO, and more
• Software and Board Support Options: Yocto Linux / Buildroot Linux / Android / QNX / Debian for Cortex-A55s, FreeRTOS for the Cortex-M7 and Cortex-M33
• SMARC 2.1.1 Standard Form Factor: 82mm x 50mm SMARC edge connector form factor includes onboard ethernet PHYs. One design supports multiple processor, memory, and wireless configurations. Allows a hardware upgrade roadmap to the latest processors and wireless options as future Ezurio SMARC SOMs are released.

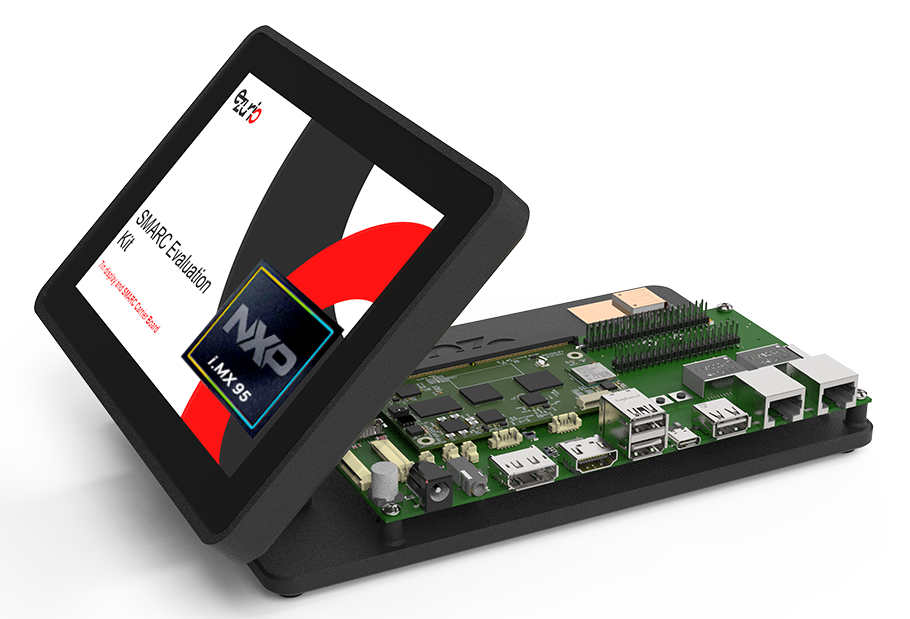

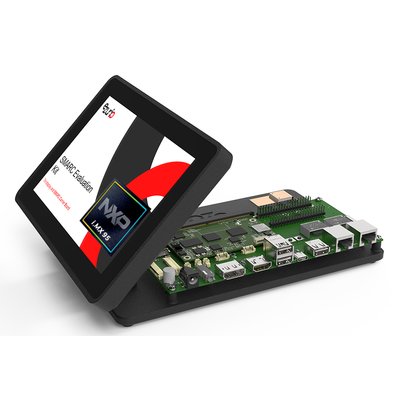

• Advanced Common Carrier/Development Board: Display, camera, audio, Ethernet, USB, PCI-Express, CAN, I2C, SPI, UART, and more. Use in development and as reference designs for your carrier board design.
• Assembled in the USA
