Revie Flex Series Cellular Antennas

Available now: The Revie Flex 700!

The Revie Flex series of internal cellular antennas are flexible, peel-and-stick antennas to cover a wide range of cellular frequencies for IoT applications. The series gives you the design flexibility to cover the whole spectrum of cellular frequencies or just the basics, based on your needs.

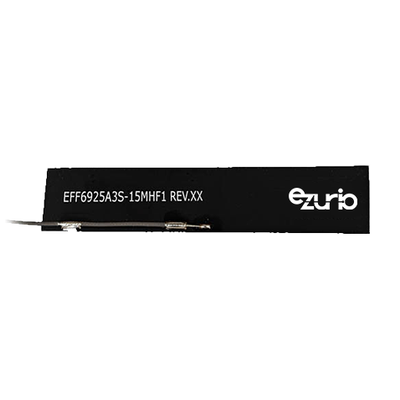

The base Revie Flex covers 698-875 MHz and 1710-2500 MHz, built specifically to support LTE-M and NB-IoT.

The Revie Flex 600 supports the full range from 600-6000 MHz, and is a powerful, full-spectrum antenna to support global cellular network operators' 5G networks. It offers some of the highest efficiencies in the market for optimal success in your IoT device.

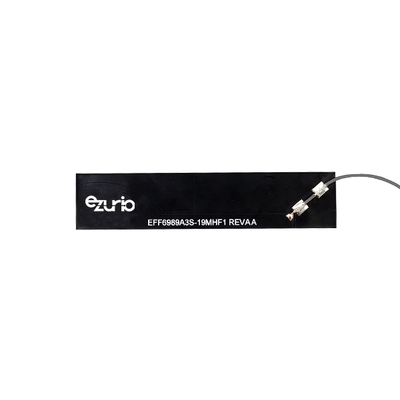

The Revie Flex 700 supports the frequency range of 698-6000 MHz in an ultra compact package measuring only 96mm long. This product is a small antenna for 5G sub-6GHz devices.

The Revie Flex series features:

• Ground plane independent - For design simplicity
• Frequency Optimized - Made for 5G, LTE-M, and NB-IoT
• Wide bandwidth - Pairs with all radios in specified frequency range
• Excellent efficiency - Greater than 50% for carrier certification
• Adhesive-backed - Easy peel-and-stick integration
• Customizable - Many connectors and cable lengths available
• World Class Support - Ezurio (formerly Laird Connectivity), THE Antenna Authority, has a team of FAEs available to support your design integration efforts; contact us today!
