450-0190

Sentrius RG1xx
    Contact Us
    IP67-RG1xx

    Specifications

    Accessories
    690-1002 / 690-1003
    Additional Description

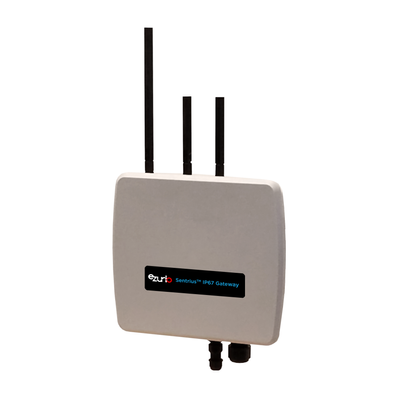

    Sentrius RG1xx IP67 Gateway - Including LoRaWAN (868MHz), Wi-Fi & Ethernet
    Antenna Type
    External
    Chipset (Wireless)
    Semtech SX1301/1257, QCA (CSR) 8811, QCA AR6004
    Frequency Range (Max)
    2483 MHz
    Frequency Range (Min)
    2400 MHz
    Frequency Range 2 (Max)
    5825 MHz
    Frequency Range 2 (Min)
    5150 MHz
    Frequency Range 3 (Max)
    870 MHz
    Frequency Range 3 (Min)
    863 MHz
    Information
    IP67
    Logical Interfaces
    Ethernet
    OS/Software
    Web-based Interface (WebLCM)
    Part Group
    Standard RG1xx (Wi-Fi / LoRa / Ethernet)
    Product Type
    IoT Gateway
    Region
    Europe (EU)
    EU863-870
    System Architecture
    Hostless
    Technology
    802.11abgn, LoRaWAN

    Documentation

    Name Part Type Last Updated
    Product Brief - Sentrius RG1xx Series Gateway 450-0190 Product Brief 03/21/2023
    Overview - Understanding LoRa 450-0190 Documentation 02/28/2019
    EU Certifications - RG186 and RG186-M2 450-0190 Certification 01/07/2021
    Quick Start Guide - Sentrius RG1xx 450-0190 Documentation 07/31/2024
    868 MHz Compatible Antennas for RG186 - Datasheet 450-0190 Datasheet 05/08/2019
    Application Note - Setting up Basic station on the Things Stack v3 450-0190 Application Note 08/09/2021
    Application Note - Setting up Basic Station on The Things Network (TTN v2) 450-0190 Application Note 05/06/2021
    Application Note - Setting Up Basics Station on ChirpStack 450-0190 Application Note 08/20/2020
    PCN 3A-2020 – RG1xx 450-0190 Documentation 04/27/2020
    PCN 9A-2018 - RG1xx 450-0190 Documentation 11/26/2019
    PCN 10A-2018 - RG1xx 450-0190 Documentation 01/17/2019
    PCN 11A-2019 - RG1xx 450-0190 Documentation 11/25/2019
    Application Note - RG1xx AWS IoT Core for LoRaWAN 450-0190 Application Note 09/05/2023
    PCN 2B-2021 – RG1xx 450-0190 Documentation 11/06/2022
    PCN_11A-2022 - RG1xx 450-0190 Documentation 11/11/2022

    Buy Now

    Distributor Part In Stock Region Buy
    DigiKey 450-0190 17 North America Buy Now
    Arrow Electronics 450-0190 0 North America Buy Now
    Farnell 450-0190 0 EMEA Buy Now
    Mouser 450-0190 0 North America Buy Now


    FAQ

    Can I really expect 15 km distance transmission using LoRaWAN in my day to day application operation?

    All Ezurio (formerly Laird Connectivity) LoRa products should be referred as LoRaWAN as they all supports its protocol. LoRaWAN protocol make use of LoRa Chirp Spectrum Modulation within a license-free sub-gigahertz frequency band that allow to transmit regularly small packets up to 15km.

    It’s important to consider that 15km can only be achieved within absolute best conditions, some of which would be an outdoor “line of sight” transmission, interference free environment, ideal humidity/temperature, highest Spreading Factor, ect… Such range magnitude cannot represent any “real world” distance transmission and shouldn’t be expected by default.
