453-00041C

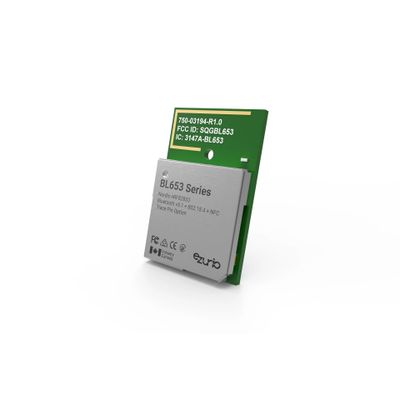

BL653 Series Bluetooth 5.4 + 802.15.4 + NFC Module

Learn more and compare with similar parts on the family page.

Specifications

Additional Description

Bluetooth 5.4 BLE Module

Antenna Options

Trace Pin (External Antenna)

Antenna Type

External

Bulk or Single

Bulk (Cut Tape)

Chipset (Wireless)

Nordic nRF52833

Frequency Range (Max)

2480 MHz

Frequency Range (Min)

2402 MHz

Frequency Range 2 (Max)

13.56 MHz

Frequency Range 2 (Min)

13.56 MHz

Logical Interfaces

Serial, GPIO, ADC, I2C, SPI, PCM, I2S, NFC, PWM, USB

OS/Software

Nordic SDK, smartBASIC, AT Commands, Zephyr

Product Type

Embedded Module

System Architecture

Hostless

Technology

Bluetooth 5.4, Single Mode (BLE), NFC

Documentation

Name	Part	Type	Last Updated
Product Brief - BL653 Series	453-00041C	Product Brief	04/17/2024
Datasheet - BL653 Series	453-00041C	Datasheet	10/30/2024

Buy Now

Distributor	Part	In Stock	Region	Buy
Mouser	453-00041C	815	North America	Buy Now
DigiKey	453-00041C	643	North America	Buy Now
Farnell	453-00041C	447	EMEA	Buy Now
Arrow Electronics	453-00041C	0	North America	Buy Now
Future Electronics	453-00041C	0	North America	Buy Now

FAQ

How to enable Direct Test Mode in BL563 module?

You can use the Application Note Using Direct Test Mode to put the BL653 in Direct Test Mode. This document describes BL653 radio testing using the in-built Direct Test Mode (DTM) firmware and Nordic nRF Connect for Desktop Direct Test Mode tool.
